Connector Kits

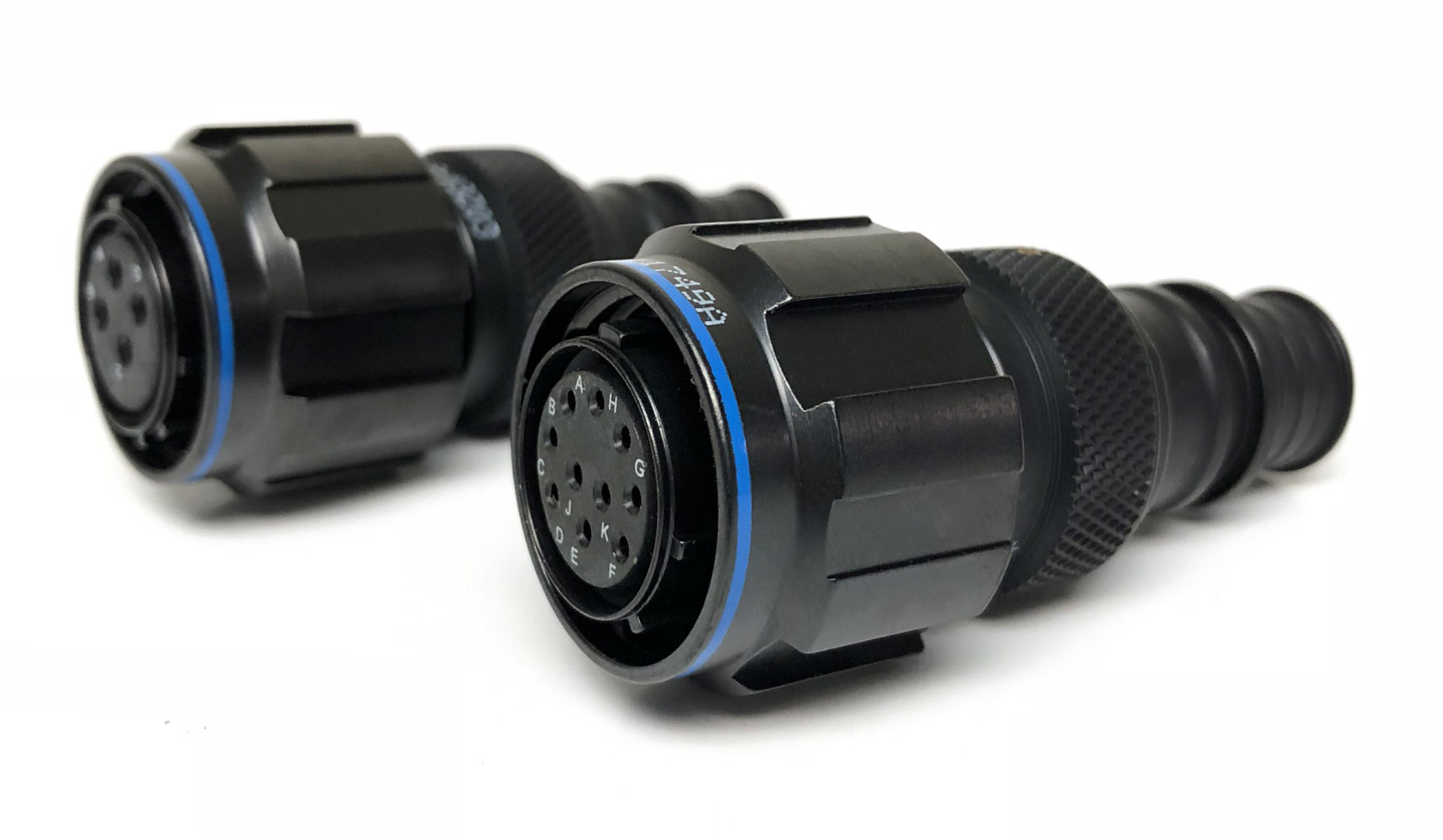

Mating Metal Connectors

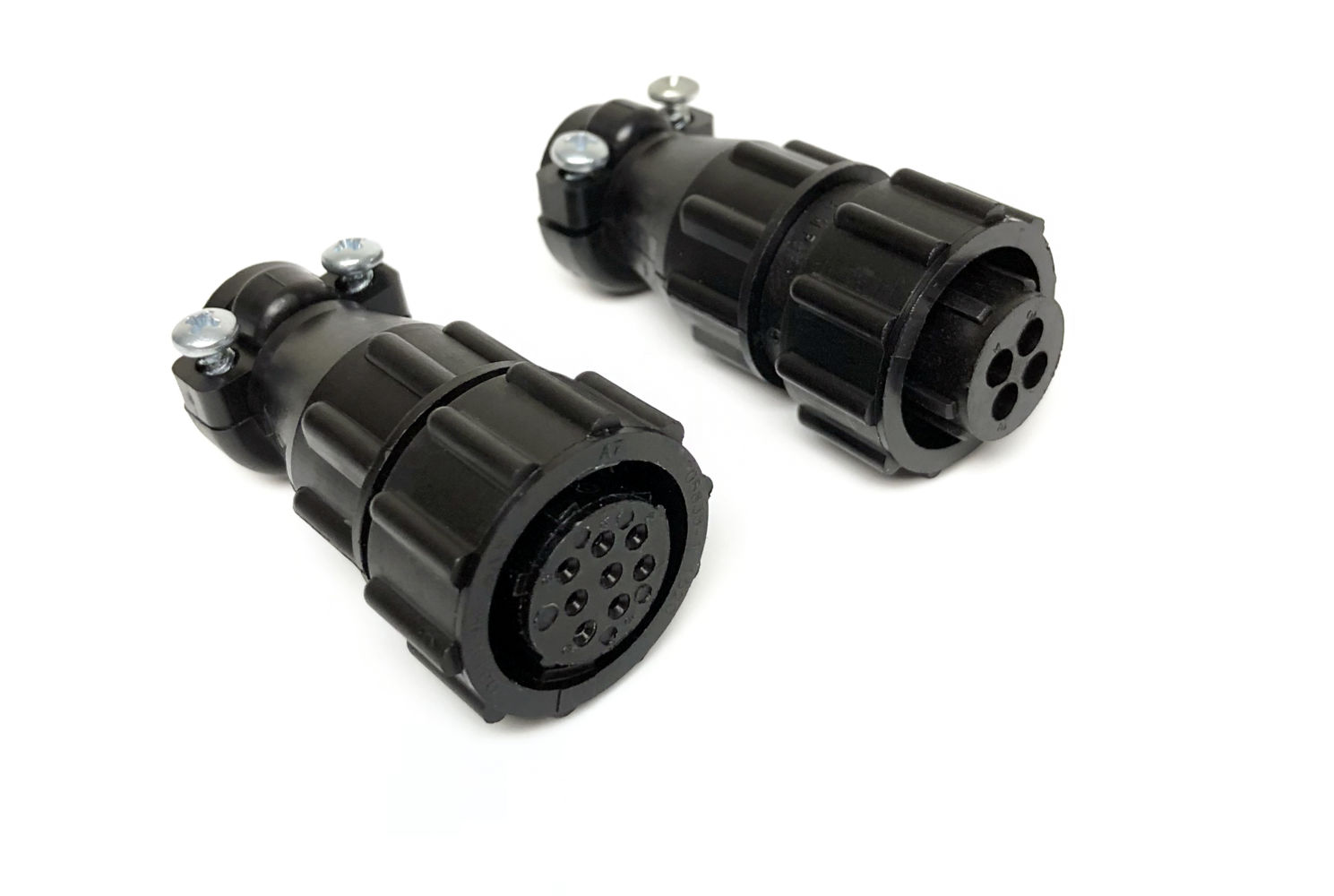

Mating Plastic Connectors

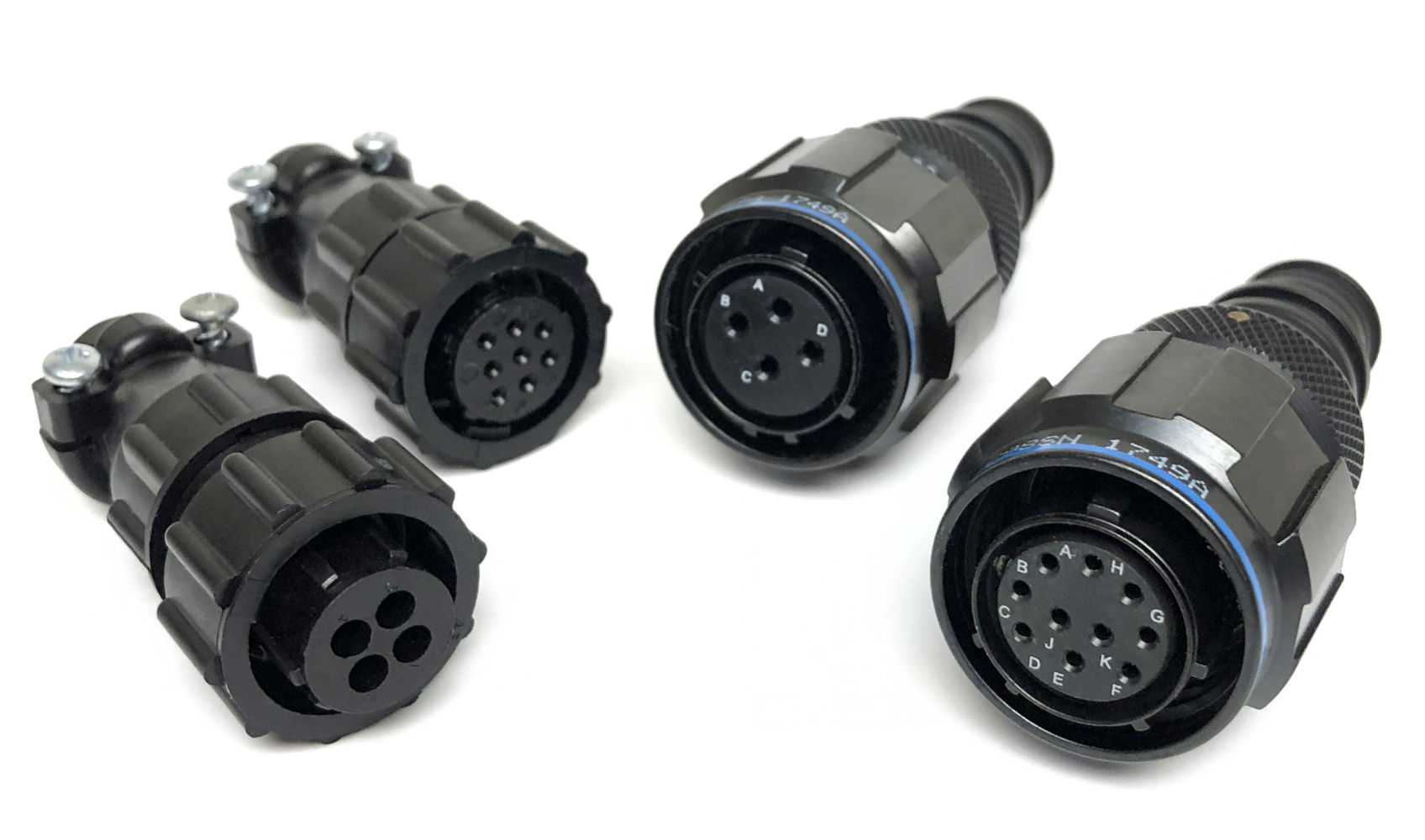

Connector Kits

Connector kits can be used to build your own power and control cables or to repair a damaged cable.

Note that MBS-430-Y Series Searchlights with Metal Connectors and all MBPKG-E Series Searchlights automatically ship with mating connector kits. See individual searchlight listings for details.

Please feel free to contact us if you need help selecting the appropriate connector kit for your cable or repair.

Request a Quote
ModelDescriptionSearchlight Compatibility
 MBA-2435Power Connector Kit, Plastic 4-pin;
mates to searchlight		Compatible with Standard Plastic Connector Searchlghts
 MBA-2445Control Connector Kit, Plastic 8-pin;
mates to searchlight		Compatible with Standard Plastic Connector (8-pin) Searchlghts
 MBA-2445-RSControl Connector Kit, Plastic 9-pin;
mates to searchlight		Compatible with RS-232-enabled Plastic Connector (9-pin) Searchlghts
 MBA-2435-MPower Connector Kit, Metal 4-pin;
mates to searchlight		Compatible with Dual Metal Connector Searchlights
 MBA-2445-MControl Connector Kit, Metal 10-pin;
mates to searchlight		Compatible with Dual Metal Connector Searchlights
 MBA-2450-ECombined Power/Control Connector Kit, Metal 12-pin;
mates to searchlight		Compatible with Single Metal Connector MBPKG-E Series
 MBA-2450-E2Combined Power & Control Connectors Kit, Metal 10-pin & 8-pin;
mates to searchlight		Compatible with Dual Metal
MBPKG-E2 Series
 MBA-2410Power Connector Kit, Plastic 4-pin;
searchlight's power connector		Compatible with Standard Plastic Connector Searchlghts
 MBA-2415Control Connector Kit, Plastic 8-pin;
searchlight's control connector		Compatible with Standard Plastic Connector (8-pin) Searchlghts
