Peak Beam Systems, Home of the MAXA Beam Searchlight

Searchlight Power Supplies

MBP-4000 Series

Power a Maxa Beam directly from a 100-240VAC source using a Searchlight Power Supply.

MBP-4000S, MBP-4000-L and MBP-5010 supplies are intended for use in dry locations sheltered from rain and salt water. These supplies ship with NEMA 5-15P line cords to connect to a U.S.-style outlet.  For installations outside of the United States, any third-party IEC320C13 line cord with the destination country’s plug can be used.

MBP-4000S-67 supplies are sealed and can be used in locations where they may be exposed to rain. These supplies have an integrated NEMA 5-15P plug to connect to a U.S.-style outlet. For installations outside of the United States, a third-party plug adapter can be used to connect to the destination’s country’s power outlet.

Note that a power cable is always required to connect any MBP-4000-* power supply to a searchlight. Only the MBP-5010 Power Supply connects directly to the searchlight with no power cable needed.



  • ModelInput Plug StyleDimensionsIngress ProtectionConnection to Searchlight

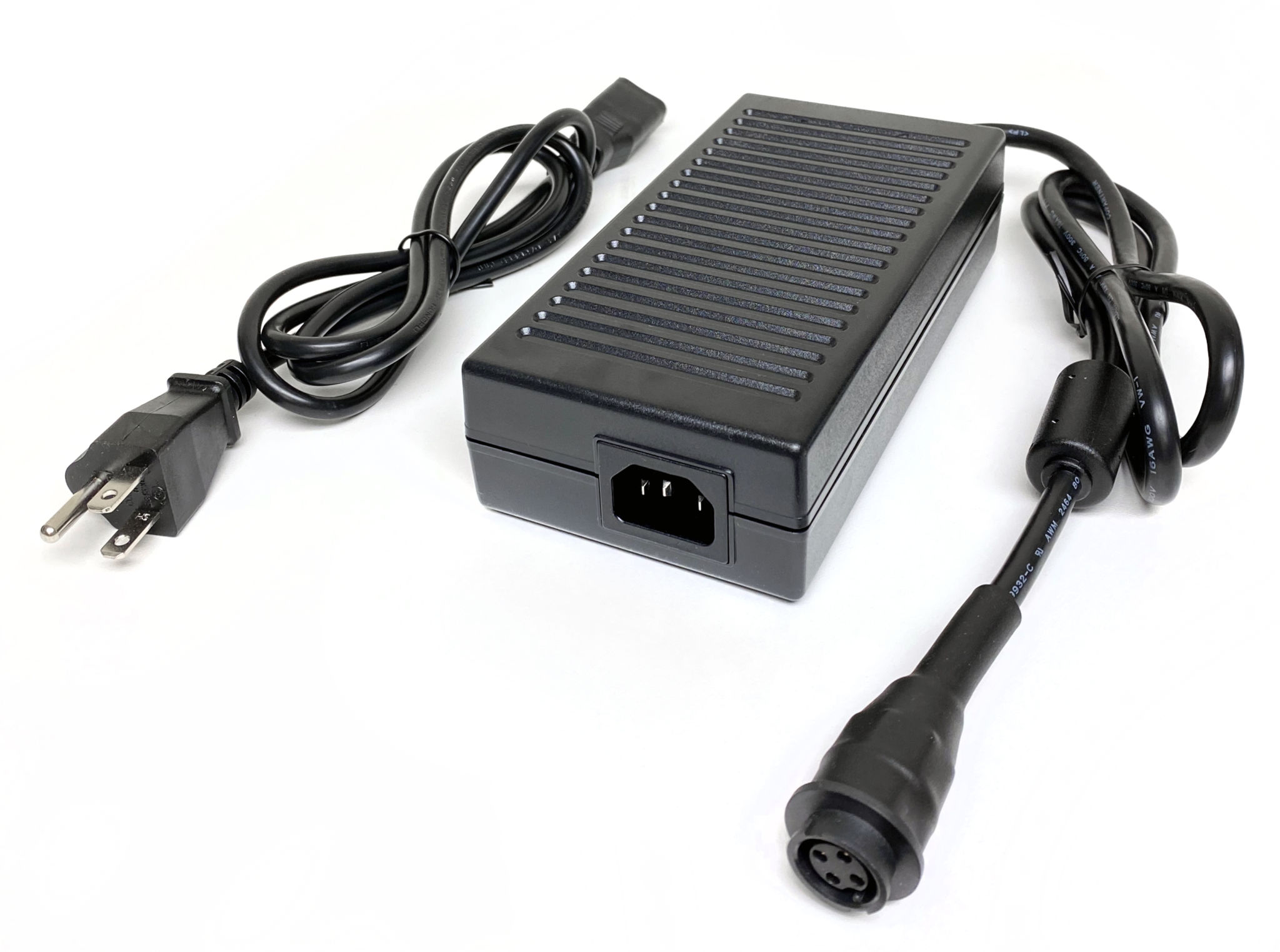

    MBP-4000-LNEMA 5-15P Plug;
    supply is compatible with any IEC320C13 Line Cord
    6.7 x 3.4 x 1.7 inches-Requires -L Power Cord to Connect to Searchlight
    MBP-4000SNEMA 5-15P Plug;
    supply is compatible with any IEC320C13 Line Cord
    6.7 x 3.4 x 1.7 inches-Requires Standard Power Cord to Connect to Searchlight

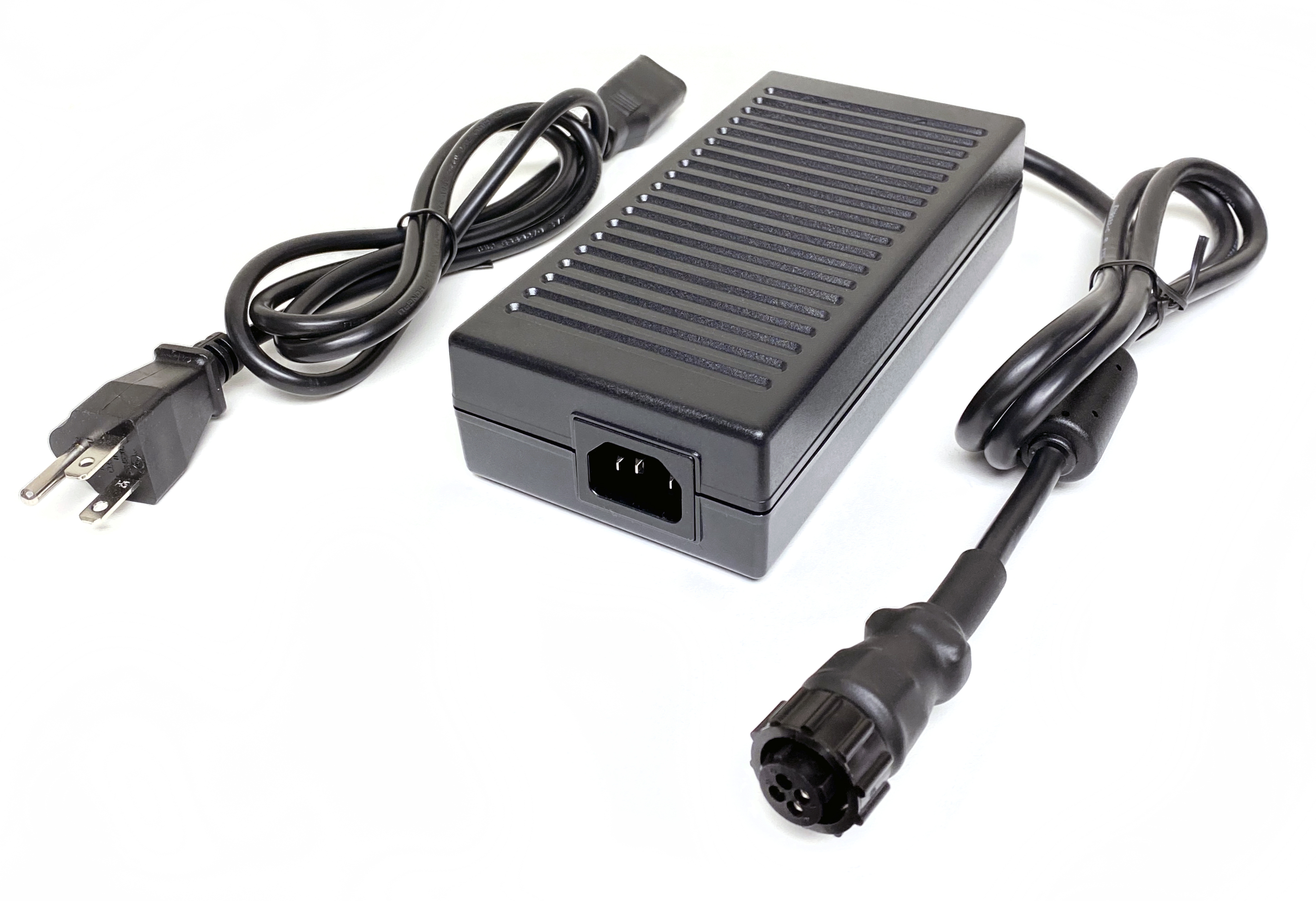

    MBP-5010NEMA 5-15P Plug;
    supply is compatible with any IEC320C13 Line Cord
    6.7 x 3.4 x 1.7 inches-Connects Directly to Searchlight

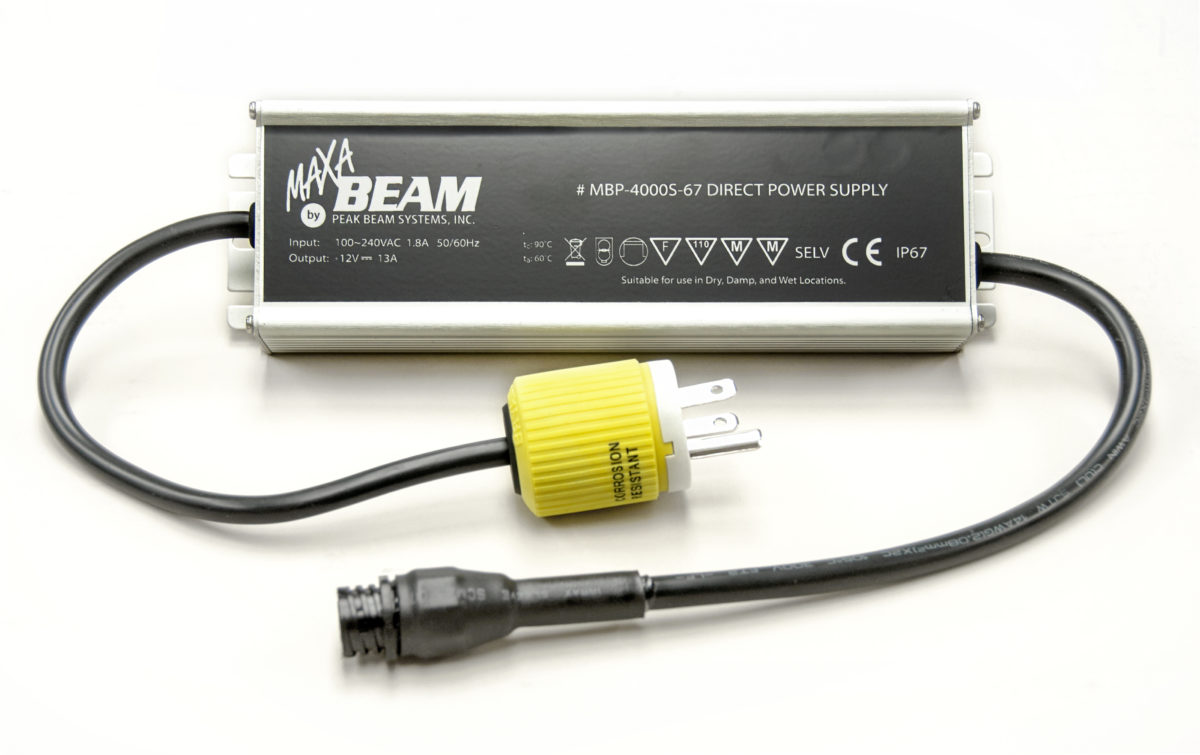

    MBP-4000S-67Corrosion Resistant NEMA 5-15P Plug, Hi-Vis Yellow9.0 x 2.7 x 1.5 inchesIP67Requires Standard Power Cord to Connect to Searchlight
