Lamp and Lens Replacement Kits

MBA-2400 Series

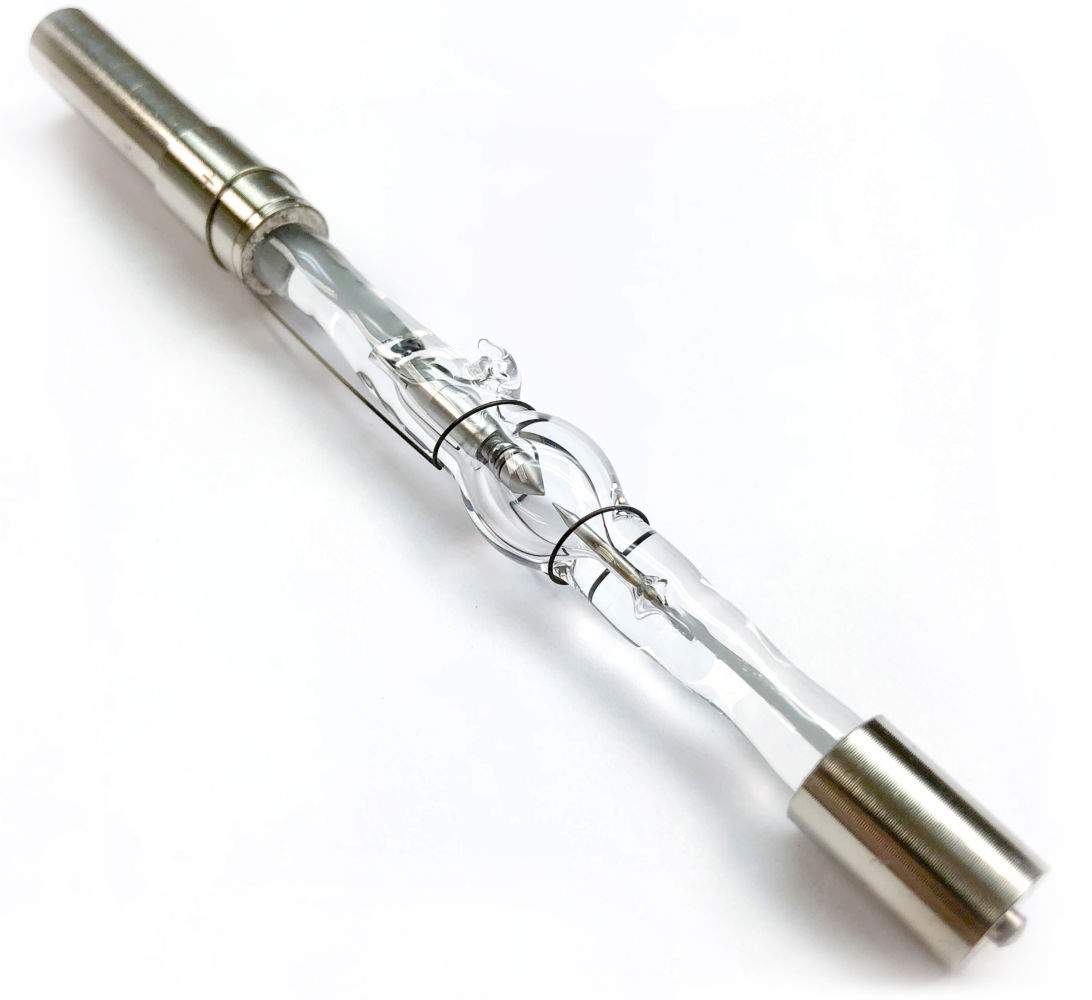

All Maxa Beam Searchlights have a field-replaceable Xenon short arc lamp and lens. These kits contain everything needed to perform maintenance on your searchlight.

Universal Lamp and Lens Kits are compatible with all MBS-410, MBS-450, and MBS-430 Searchlights with standard or spyder lenses.

For complete, detailed instructions on how to replace a searchlight’s lamp or lens, please see the Instruction Sheet that ships with each Replacement Kit.

For instructions on how to refocus the searchlight’s lamp following a lamp or lens replacement, please consult the Instruction Sheet or visit the FAQs page.

  • ModelDescriptionCompatible Searchlight Models
     MBA-2400Universal Lamp Replacement Kit
    NSN: 6230-01-393-1817
    MBS-410/430-* Searchlights with Spyder Lens;
    Legacy MBS-410/430/450 Searchlights
     MBA-2420Universal Spyder Lens Replacement Kit
    NSN: 6230-01-569-9679
    MBS-410/430-* Searchlights with Spyder Lens;
    Legacy MBS-410/430/450 Searchlights
    MBA-2400/20Universal Lamp and Spyder Lens Replacement KitMBS-410/430-* Searchlights with Spyder Lens;
    Legacy MBS-410/430/450 Searchlights
    MBA-2400NCombination Lamp, Lens, and Searchlight Power Connector Replacement Kit
    NSN: 6230-01-479-9029
    MBS-410/430-* Searchlights with Spyder Lens and Plastic Connectors;
    Legacy MBS-410/430/450 Searchlights
     MBA-2400-ELamp Replacement Kit for MBPKG-E Series SearchlightsMBPKG-E Series Searchlights
     MBA-2400-MLamp Replacement Kit for Searchights with Metal Lens RingMBS-430-(RS)MM and MBS-430-W4-(RS)MM Searchlights with Metal Lens
     MBA-2420-MAnodized Aluminum Lens Replacement KitMBS-430-(RS)MM and MBS-430-W4-(RS)MM Searchlights with Metal Lens
    • ALWAYS wear included protective eyewear, a long-sleeved jacket, and gloves whenever the searchlight front lens is removed or the lamp is being handled.
    • ALWAYS disconnect the searchlight from power when performing maintenance. Never perform maintenance on a searchlight connected to power.
    • NEVER touch the quartz envelope of the lamp. If accidentally touched, clean the lamp with alcohol wipes and allow it to dry completely before installing.
    • NEVER wipe the reflector surface as this may scratch or abrade the reflective surface.
    • NEVER look directly into the searchlight when it is turned on. Due to the high intensity light that is emitted, serious eye injury may occur.
