Searchlight Vehicle Adapters (12VDC)

MBA-7000 Series

Vehicle Adapters allow the Maxa Beam Searchlight to be powered directly from a 12VDC source.

MBA-7100 Series Adapters feature a fused 12V vehicle plug, circular locking connectors and a flexible, UV-resistant matte black PVC jacket.

The MBA-7200 Bulkhead Adapter is designed to be permanently wired into a 12V source and features a weatherproof cap that protects the connector when not in use.

  • ModelDescriptionCable LengthConnection to Searchlight

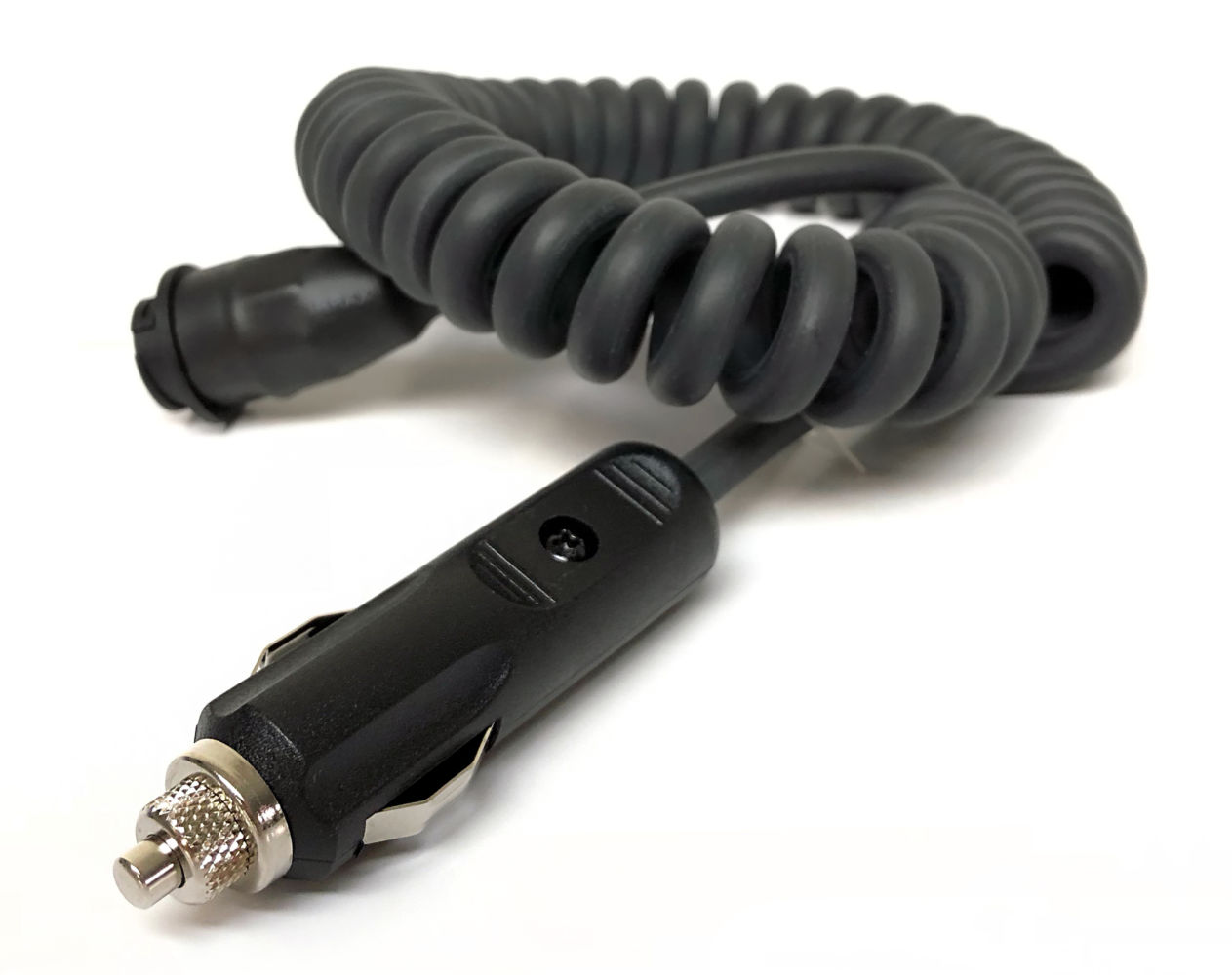

     MBA-7100-L12V Searchlight Vehicle Adapter5 Foot CoilRequires "L" Power Cord to Connect to Searchlight
    MBA-710012V Searchlight Vehicle Adapter
    NSN: 6230-01-393-1818
    5 Foot CoilRequires Standard Power Cord to Connect to Searchlight

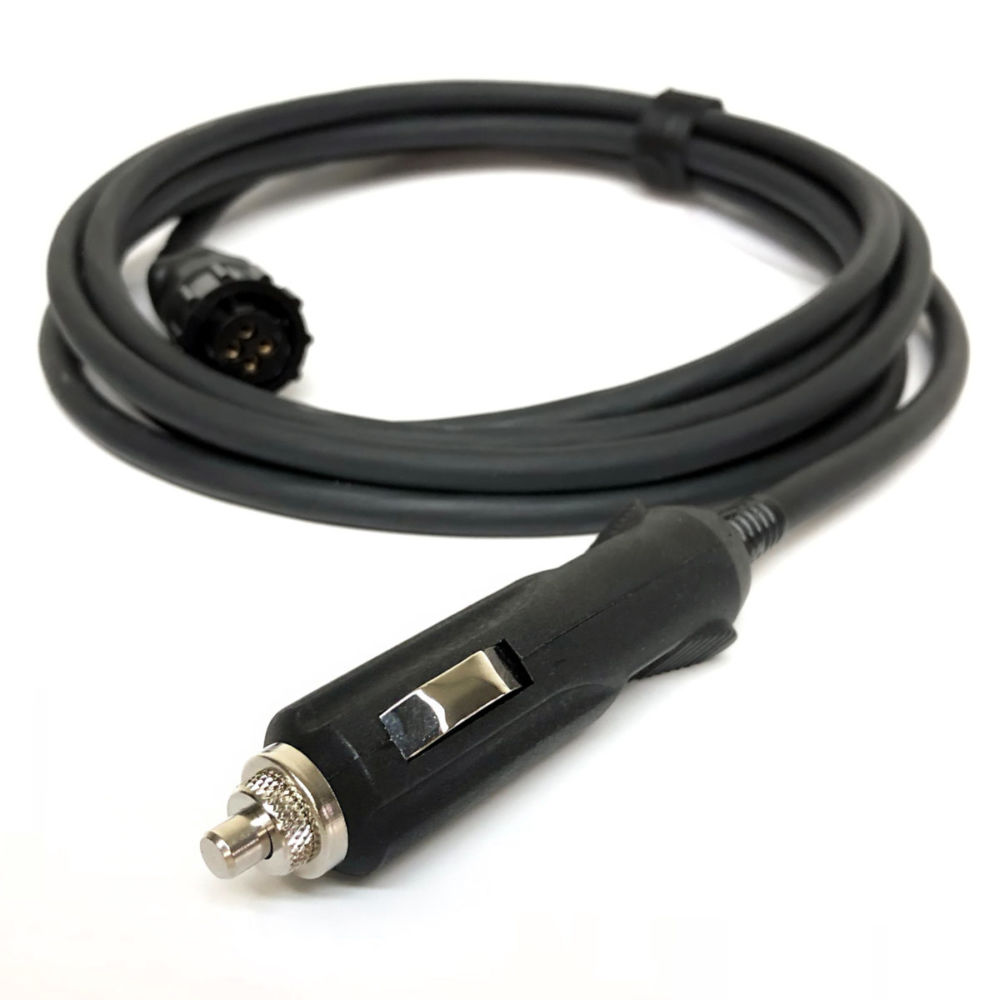

     MBA-711012V Searchlight Vehicle Adapter10 FootConnects directly to Searchlight

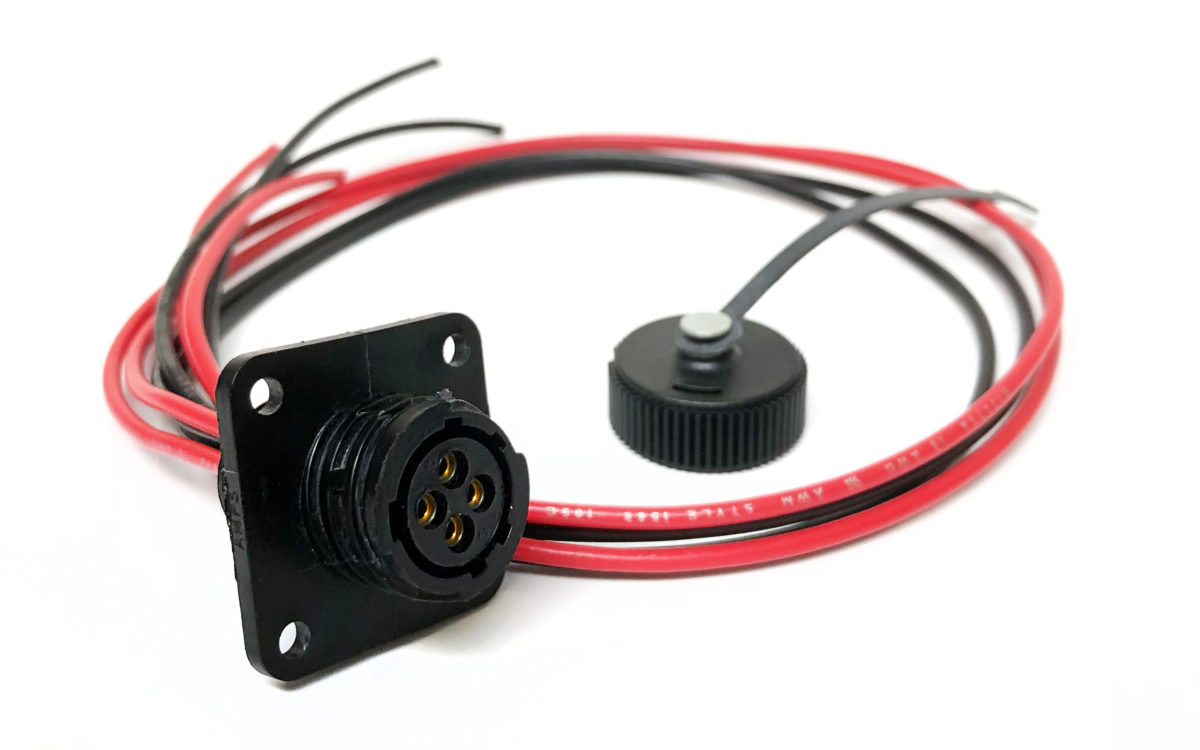

     MBA-720012V Bulkhead Receptacle Assembly
    (installation required)
    NSN: 6230-01-393-1819
    6 Inch Wire AssemblyRequires Standard Power Cord to Connect to Searchlight
    MBA-7210-L12V Vehicle Power Adapter
    with Inline 15A Fuse
    10 FootRequires "L" Power Cord to Connect to Searchlight
