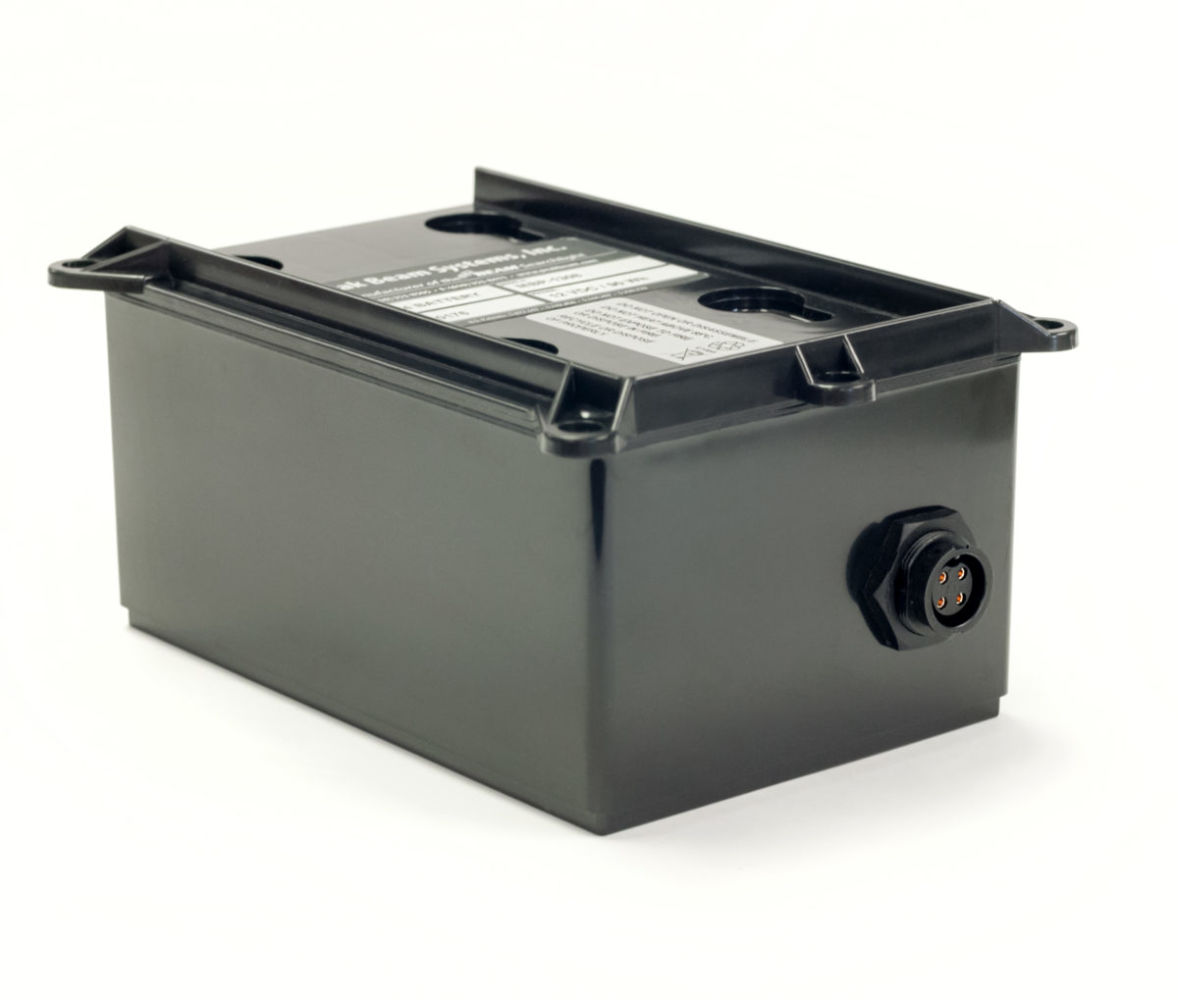

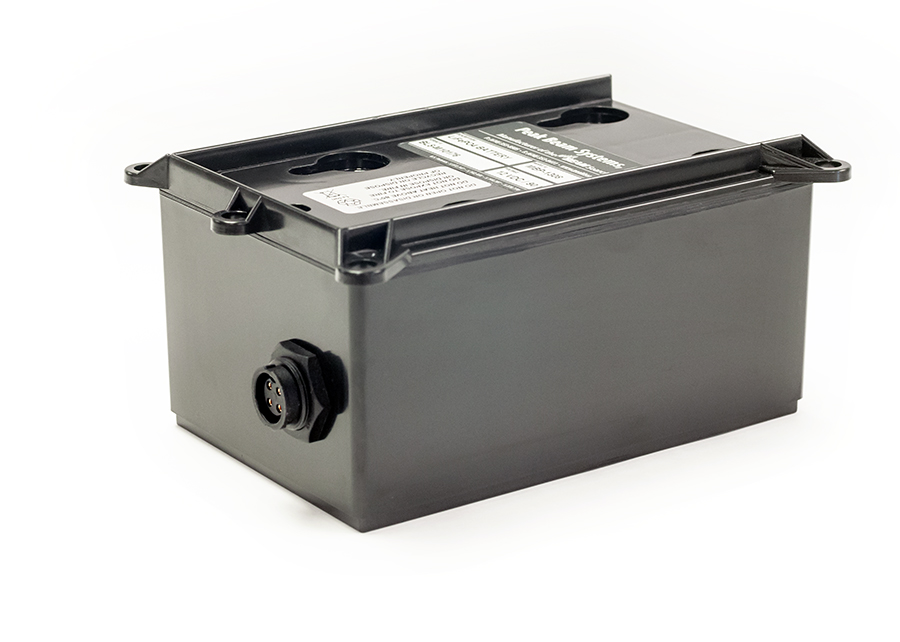

7.5AH LiFePO4 Battery

Part # MBP-1308

LiFePO4 Batteries offer a longer run time, faster charge time, and more life cycles than any previous Maxa Beam battery.

With a 115 minute run time, long shelf life and rapid recharge, the LiFePO4 Battery is the most popular choice for both new searchlight systems and upgrades of older equipment.

  • Compatible with all Maxa Beam Searchlights (LiFePO4 Charger and Cord required).
  • Lightweight, long-running battery with low self-discharge rate and excellent shelf life.
  • Simple, low-maintenance design is straightforward to use and maintain.
  • No memory issues; recharge or top off at any time.

Note: If you are upgrading an older searchlight system, a LiFePO4-compatible charger and power cord are required to charge and connect your new battery.

  •  MBP-1308
    LiFePO4 Battery

    MBP-1308-FG
    LiFePO4 Battery
    with Fuel Gauge

    MBP-1207
    NiCad Battery
    DISCONTINUED
    MBP-1307
    Li-Ion Battery
    DISCONTINUED
    ChemistryLithium Iron PhosphateLithium Iron PhosphateNickel-CadmiumLithium-Ion
    Capacity7.5 Amp-hours7.5 Amp-hours7 Amp-hours6.6 Amp-hours
    Life Cycles2,5002,5001,000500
    Run Time115 minutes (regular)
    75 minutes (high)
    115 minutes (regular)
    75 minutes (high)
    90 minutes (regular)
    55 minutes (high)
    110 minutes (regular)
    60 minutes (high)
    Charge Time110 minutes110 minutes150 minutes to 18 hours180 minutes
    Dimensions5 x 7.25 x 3.5 inches5 x 7.25 x 3.5 inches5 x 7.25 x 3.5 inches5 x 7.25 x 2.75 inches
    Weight3.0 lbs.3.1 lbs.5.5 lbs.2.5 lbs.

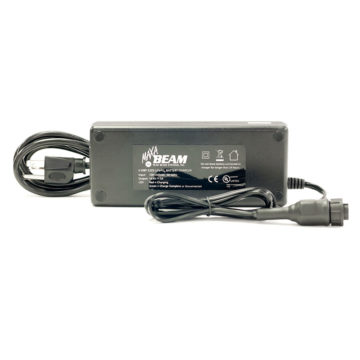

    ChargerMBP-3205 (AC-Only)

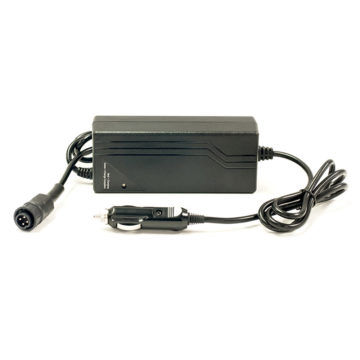

    MBP-3230 (12VDC)

    MBP-3200 (Multi-Voltage)
    MBP-3205 (AC-Only)

    MBP-3230 (12VDC)

    MBP-3200 (Multi-Voltage)
    MBP-5000 Series
    MBP-3000 Series
    MBP-5003 (AC)
    MBP-5230 (DC)
    FeaturesLow Self-Discharge Rate5-Level LED Fuel Gauge
    Low Self-Discharge Rage

  • Battery Safety Warnings:

    • Do not expose to fire or open flame.
    • Do not puncture, deform, incinerate or heat above 85°C (185°F).
    • Do not open or disassemble. Batteries are sealed in a waterproof case with no user-serviceable components.  Do not attempt to use a battery that has a damaged case; please contact the factory about our re-casing service.
    • Do not dispose in fire. Disposal must be conducted in accordance with applicable local, state, or national regulations. Batteries contain recyclable materials; recycling is encouraged over disposal.
    • A Safety Data Sheet (SDS) for this battery is available upon request.

    Battery Storage and Transport:

    Always disconnect battery from the searchlight before storing or transporting.  If storing battery for long periods of time, store battery at 75% charge level and recharge once every six months.  Do not store batteries above 60°C (140°F) or below -20°C (-4°F).  Store in a cool, dry location not subject to frequent temperature fluctuations.  Elevated temperatures can result in reduced battery service life.

    All Lithium Ion batteries are classified as Class 9 Dangerous Goods for air, sea and surface transport and must be packaged and transported according to applicable regulations.  However, small, “excepted” batteries such as the MBP-1308 LiFePO4 Battery are not subject to certain provisions of the regulations (e.g. Class 9 labeling and UN specification packaging).

    • Batteries shipped within the United States via ground transport methods must be packed, marked and labeled in accordance with the exceptions for small lithium batteries per 49 CFR 173.185(c).
    • Batteries shipped via air transport methods without searchlights are classified as UN3480 Lithium ion batteries and must be packed, marked and labeled in accordance with Sec II or Sec IB of IATA/ICAO PI 965 – Cargo Aircraft Only.
    • Batteries shipped via air transport methods with searchlights are classified as UN3481 Lithium ion batteries packed with equipment and must be packed, marked and labeled in accordance with Sec II of IATA/ICAO PI 966.
